EC7823A1004燃烧控制器

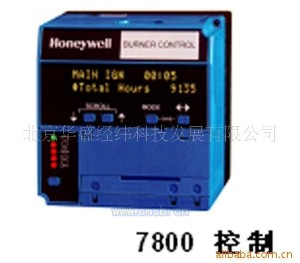

7800系列燃烧程序控制器
7800-系列燃烧程序控制器即EC7800（230Vac）Honeywell公司的7800系列燃烧控制器可用于大、中型燃烧设备，它包括燃烧程序控制（EC7800或RM7800），火焰信号放大器，信息显示面板，前吹扫时间控制插片及通用机座等部件组成。与其它控制器相比，具有以下特点：
a.通过部件的组合，可获得极强的通用性
b.燃烧过程纪录
c.动态部件自检
d.过程信号的远传及远端控制
e.状态及报警显示，报警处理提示
EC7823,EC7830,EC7890,EC7895,1005,RM7800,RM7823,RM7838,RM7840,RM7890,RM7895,R7847,R7849,R7861,R7886,R7247,S7800A1001,S7820A1007,Q7800A1005,ec7850,S7800A1001,R7849,R7847,st7800A1049,
控制器
EC7810A1027RM7840G1014
EC7810A1035RM7840L1018
EC7820A1026RM7840L1018
EC7820A1034RM7840L1026
EC7823A1004RM7840M1017
EC7830A1033RM7840M1017
EC7830A1041RM7850A1001
EC7830A1066RM7850A1019
EC7850A1064RM7850A1027
EC7850A1072RM7885A1015
EC7850A1080RM7888A1019
EC7850A1122RM7888A1019
EC7885A1011RM7888A1027
EC7890A1011RM7890A1015
EC7890A1029RM7890A1015
EC7890B1010RM7890A1031
EC7890B1028RM7890A1031
EC7895A1010RM7890A1049
EC7895C1000RM7890B1014
RM7800E1010RM7890B1014
RM7800G1018RM7890B1022
RM7800G1018RM7890B1030
RM7800L1012RM7890C1005
RM7800L1012RM7890C1005
RM7800L1038RM7890D1004
RM7800L1046RM7895A1014
RM7800L1053RM7895A1014
RM7800L1053RM7895A1048
RM7800M1011RM7895A1048
RM7800M1011RM7895A1055
RM7800M1037RM7895B1013
RM7823A1016RM7895B1013
RM7823A1016RM7895C1012
RM7824A1006RM7895C1012
RM7830A1003RM7895C1020
RM7830A1011RM7895C1020


RM7830A1029RM7895D1011
RM7838A1014RM7895E1002
RM7838A1014RM7895F1001
RM7838B1013RM7896A1012<,/FONT>
RM7838B1013RM7896B1011
RM7838C1004RM7896C1010
RM7838C1004RM7896D1019
RM7840E1016RM7896D1027
RM7840G1014RM7896D1027
R7800–火焰信号放大器：
型号放大器自检熄火反应时间适用探测器
R7847A1025无0.8~1.0秒离子探针型火焰探测器
R7847A1033无2.0~3.0秒离子探针型火焰探测器
R7847A1074无0.8~1.0秒C7012A/C
R7847B1031有0.8~1.0秒C7012A/C及离子探针型火焰探测器
R7847C1005有2.0~3.0秒C7012E/F
R7849A1015无0.8~1.0秒C7027，C7035，C7044
R7849A1023无2.0~3.0秒C7027，C7035，C7044
R7849B1013有0.8~1.0秒C7027，C7035，C7044
R7849B1021有2.0~3.0秒C7027，C7035，C7044
R7848A1008无2.0~3.0秒C7015
R7861A1026无2.0~3.0秒C7061
R7861A1034无0.8~1.0秒C7061
R7886A1001有2.0~3.0秒C7076A/D
Q7800–通用接线座：
Q7800A10057800系列燃烧控制器通用底座，控制柜安装型。
Q7800B10037800系列燃烧控制器通用底座，现场安装型。
S7800–工作状态显示板
S7800A1001英文显示

S7810–数据通讯板
S7810A1009数据通讯，显示板远端中继，及远端复位

S7800A–吹扫时间定时卡：
ST7800A10137秒钟ST7800A10884分钟
ST7800A102110秒钟ST7800A10966分钟
ST7800A103930秒钟ST7800A11049分钟
ST7800A104740秒钟ST7800A111212分钟
ST7800A105460秒钟ST7800A112015分钟
ST7800A106290秒钟ST7800A113822分钟
ST7800A10702.5分钟ST7800A104630分钟
